Single Hidden Bookcase Door – Drawer Base Design (Style 4)
Single Hidden Bookcase Door – Drawer Base Design (Style 4)
Single Hidden Bookcase Door – Drawer Base Design (Style 4)
Single Hidden Bookcase Door – Drawer Base Design (Style 4)
Single Hidden Bookcase Door – Drawer Base Design (Style 4)
Single Hidden Bookcase Door – Drawer Base Design (Style 4)
Single Hidden Bookcase Door – Drawer Base Design (Style 4)
Single Hidden Bookcase Door – Drawer Base Design (Style 4)

Single Hidden Bookcase Door – Drawer Base Design (Style 4)

Product Description

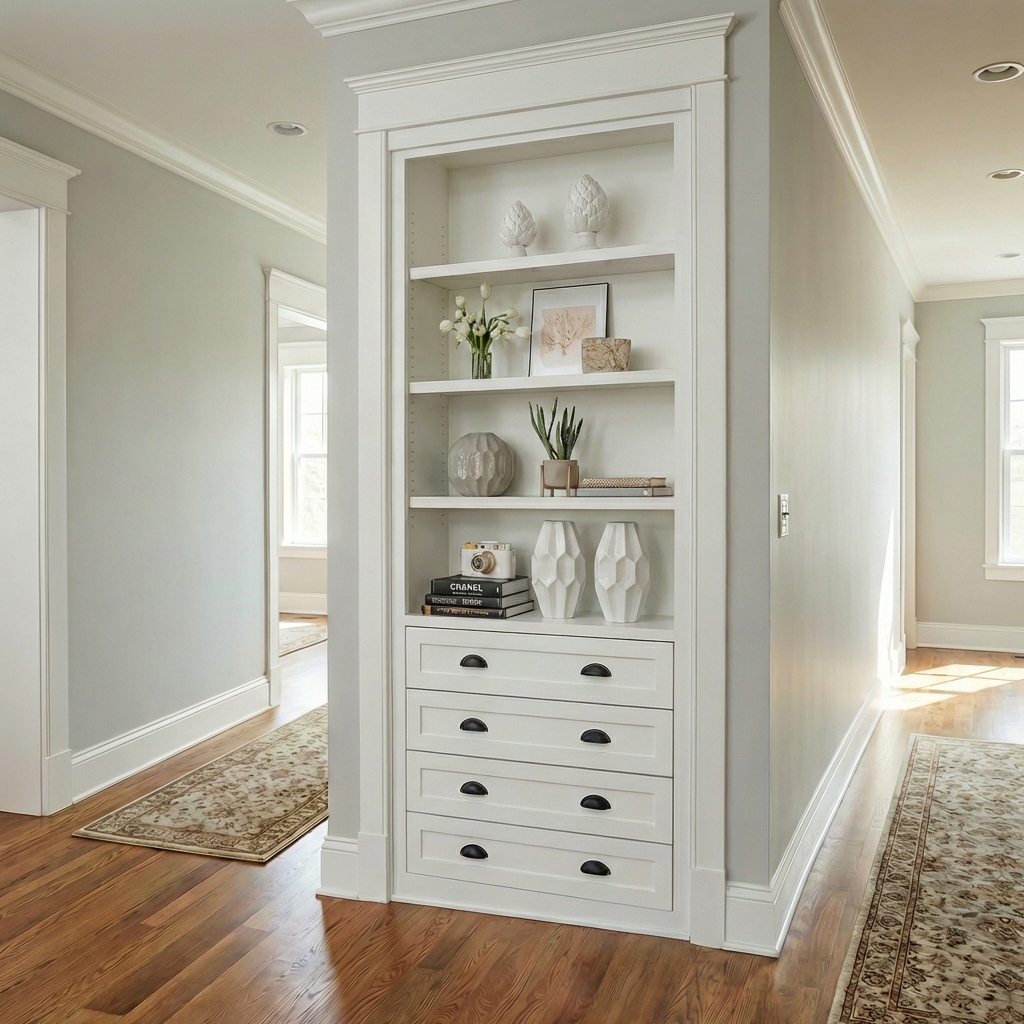

The Maderra Hidden Bookcase Door – Style 4 combines elegant storage and hidden functionality in one sleek design. Featuring a full bookshelf layout with four lower drawers and open shelving above, this concealed door offers the perfect balance of beauty, practicality, and craftsmanship.

Each unit is handcrafted in the USA and custom-built to order, transforming an ordinary doorway into a beautiful, functional secret passage. The integrated pin-pivot system—built directly into the door—delivers a smooth, stable swing without visible hinges, ensuring a seamless appearance from every angle.

Choose between inswing (push-in) or outswing (pull-out) configurations to suit your space and layout. Whether used to conceal a private office, safe room, or hidden retreat, this door adds a statement of luxury and intrigue to any home.

Each Maderra door is pre-hung for easy installation and built from engineered MDF for a smooth, durable finish that’s ideal for custom paint or stain. With adjustable shelving and a timeless shaker-drawer style, Style 4 offers exceptional utility and design versatility for both traditional and modern interiors.


Specifications

  • Standard door depth: 9.25″
    Door depth can be increased upon request. Please note that a deeper door will slightly reduce your walkthrough opening once installed.

  • Shelf depth: 7.8″

  • Shelving configuration: The number of shelves varies depending on the door height. Each shelf is fully adjustable and spaced approximately 12–14 inches apart.

  • Functional Bottom Cabinet Drawers,Height 28”.

  • Material: Engineered MDF (available in paint-grade or woodgrain finish)

  • Door frame: Prehung frame requires on-site assembly ( door frame is included )

  • Swing options: Inswing (push-in) or Outswing (pull-out)

  • Hardware: Each door features a precision pin-pivot system built directly into the frame—no hinges required.

  • Casing options: Classic, Modern, or Craftsman

How to Measure Your Door Opening

To ensure your hidden bookcase door fits perfectly, please follow these simple steps when measuring your Rough Opening (RO):

    • Measure from the door jamb — not the door stop.
      The door stop will be removed when we install the prehung door frame, so please measure only from jamb to jamb.

    • Take two measurements:

      1. RO Width: from the inside of one door jamb to the inside of the opposite jamb.

      2. RO Height: from the floor to the bottom of the top jamb.

    • Submit your exact measurements.

    Once we receive your measurements, Maderra will automatically deduct ¾” from the height and ¼” from the width.

    This provides the necessary clearance and adjustment space for smooth installation of the prehung door frame.
    See video:


      •

      Clearance Reduction by Swing Type

      Inswing Doors: Reduce the walkthrough width by approximately 5.7 inches.

      • Example: A 36-inch RO will provide a 30.3-inch walkthrough opening.

      • Outswing Doors: Reduce the walkthrough width by approximately 12.5 inches.

      • Example: A 36-inch RO will provide a 23.5-inch walkthrough opening.




      Will a Hidden Bookcase Door work in my opening?


      Yes. Our hidden bookcase doors work in all three layouts shown.

      Flush opening (flat wall)

      • Use our Flush-Mount Hidden Door.

      • The unit can be built outswing or inswing. See clearances below.

      Single-side return (one short wall at the opening)

      • Installs the same as a flush opening.

      • Choose outswing or inswing and follow the required clearances.

      Hallway / recessed (three-sided return)

      • At the hallway entrance: treat it like a flush opening.

      • Inside the hallway: you must frame a proper rough opening inside the corridor with a header and jack studs so the prehung unit and casing can fasten securely. Provide at least 2.5 inches of jack-stud width around your door entry.

      Swing options

      • Outswing: the bookcase swings toward you as you enter the room/hallway.
      • Inswing: the bookcase swings away from you into the next room/hallway.

      Minimum side clearances (critical)

      These allow solid fastening to the jack stud and room for casing around the opening.

      • Outswing: 2.5 inches minimum clearance from the adjacent return/side wall.
      • Inswing: 4.5 inches minimum clearance from the adjacent return/side wall.


        Framing & Clearance Requirements

        For proper installation, all Maderra doors must be installed in a standard framed opening that includes a header and jack studs on both sides.Wall thickness: A minimum of 2.5″ is required to install casing and trim around the door entry.

        • Inswing doors: Require at least 4.5″ of clearance from any wall or obstruction on the side the door swings into. This ensures the door can open fully into the room.

        • Outswing doors: Require a minimum wall thickness of 2.5″ for proper installation and casing placement.

        • Hallway installations: If your door will be placed in a hallway, it still be framed with jack studs and a header, and may require custom adjustments to fit the space properly.
